9 Circle 30 Cup Remover - 9CL-83170-01

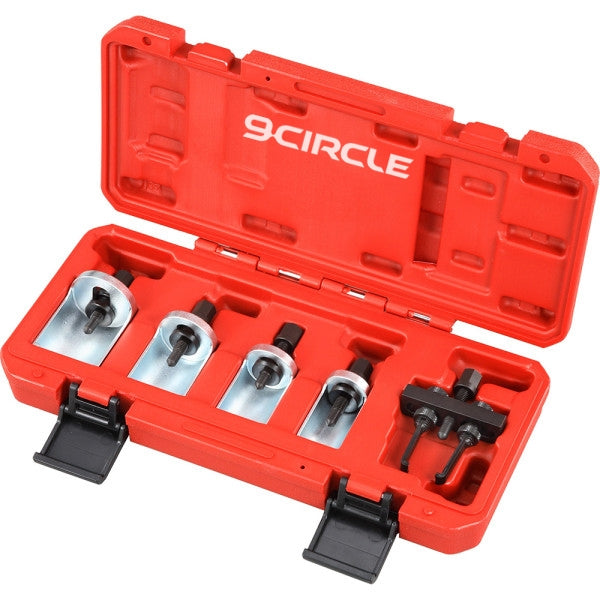

•  Includes 4 cup extractors and 1 adjustable puller.
•  4 cups provide wide application.
•  Puller with its removable and adjustable legs works easily in small spaces.

HOW TO USE THE REMOVER

1.  Remove the plastic cover.
2.  Choose spanner and release the nut.
3.  Choose a suitable size remover from this set.
4.  Hook the remover and seize the target. Adjust the spindle height and distance. The slot helps position work well.

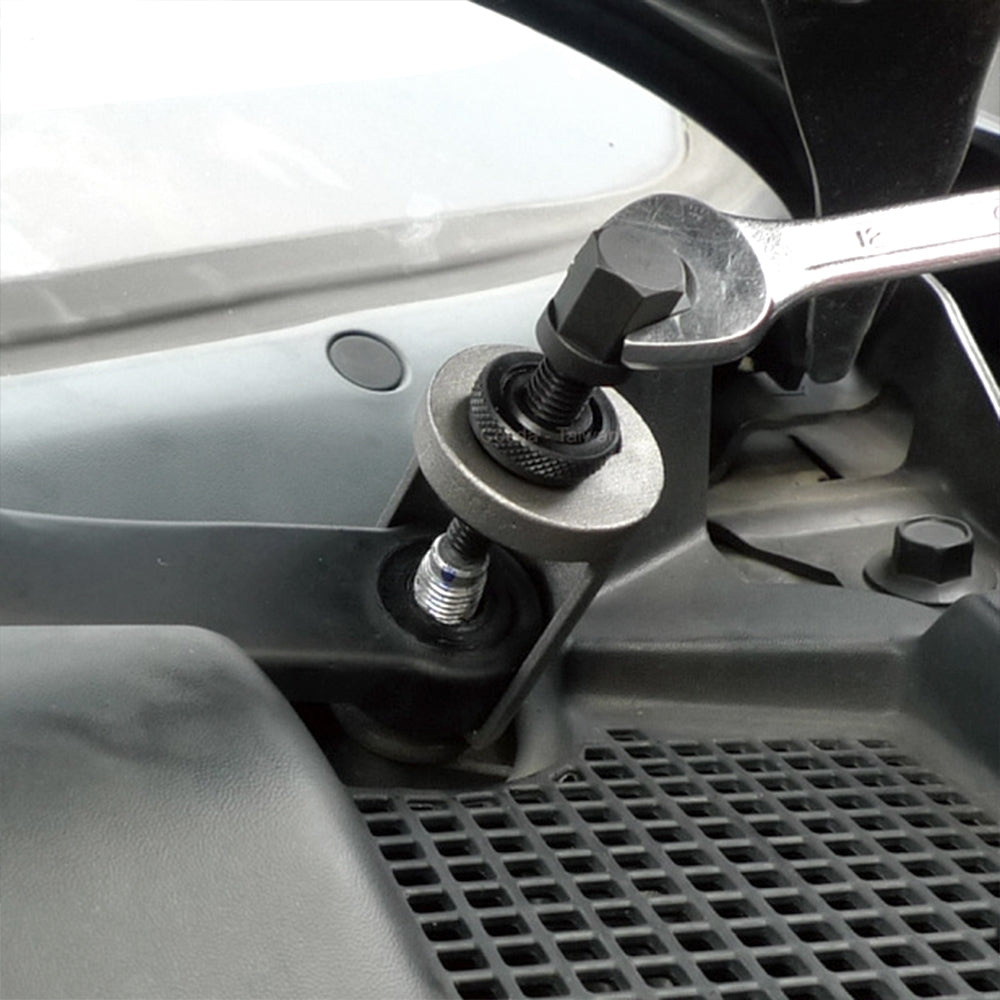

5.  Screw the spindle with hand or 12 mm spanner, then release the target easily.
6.  Remove the wiper arm, work done.

HOW TO USE THE PULLER

1.  Remove the plastic cover.
2.  Choose spanner and release the nut.
3.  Screw out the small nut on top; install one leg first and adjust tool.
4.  Install second leg and adjust two leg to seize well.
5.  Screw the spindle clockwise with 12 mm spanner.
6.  Release the target and remove the wiper arm easily.
